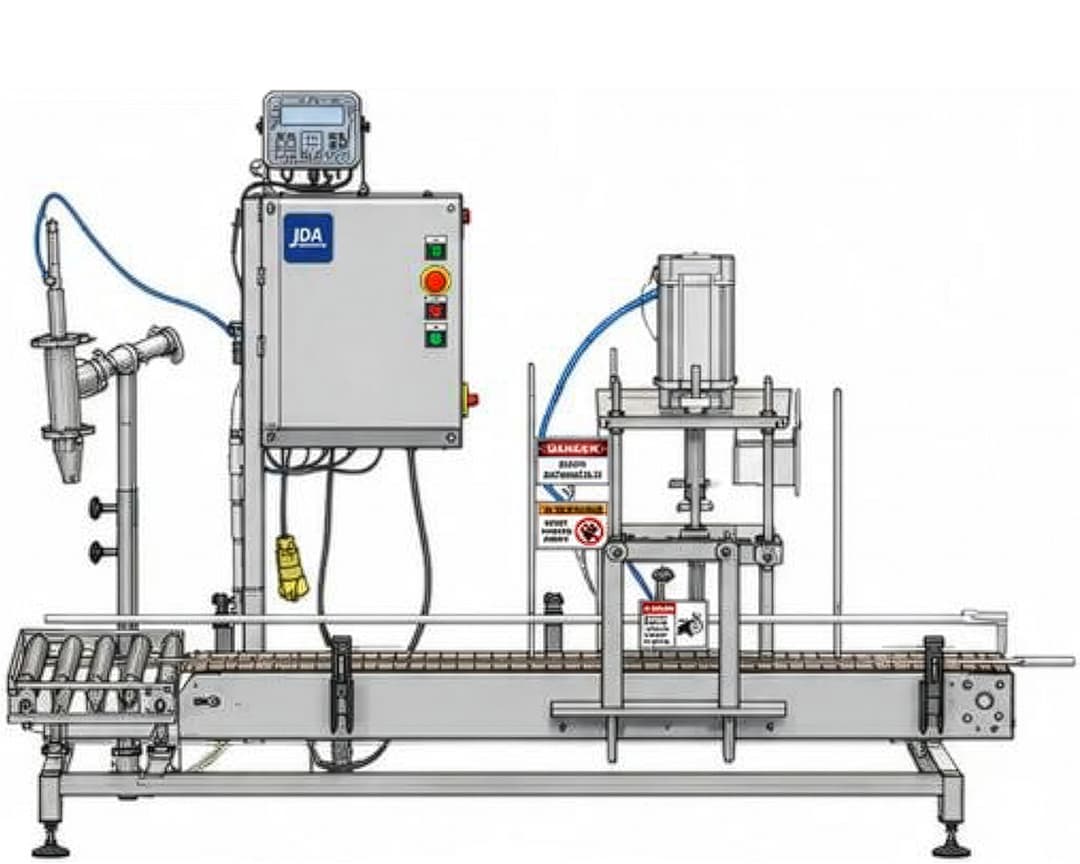

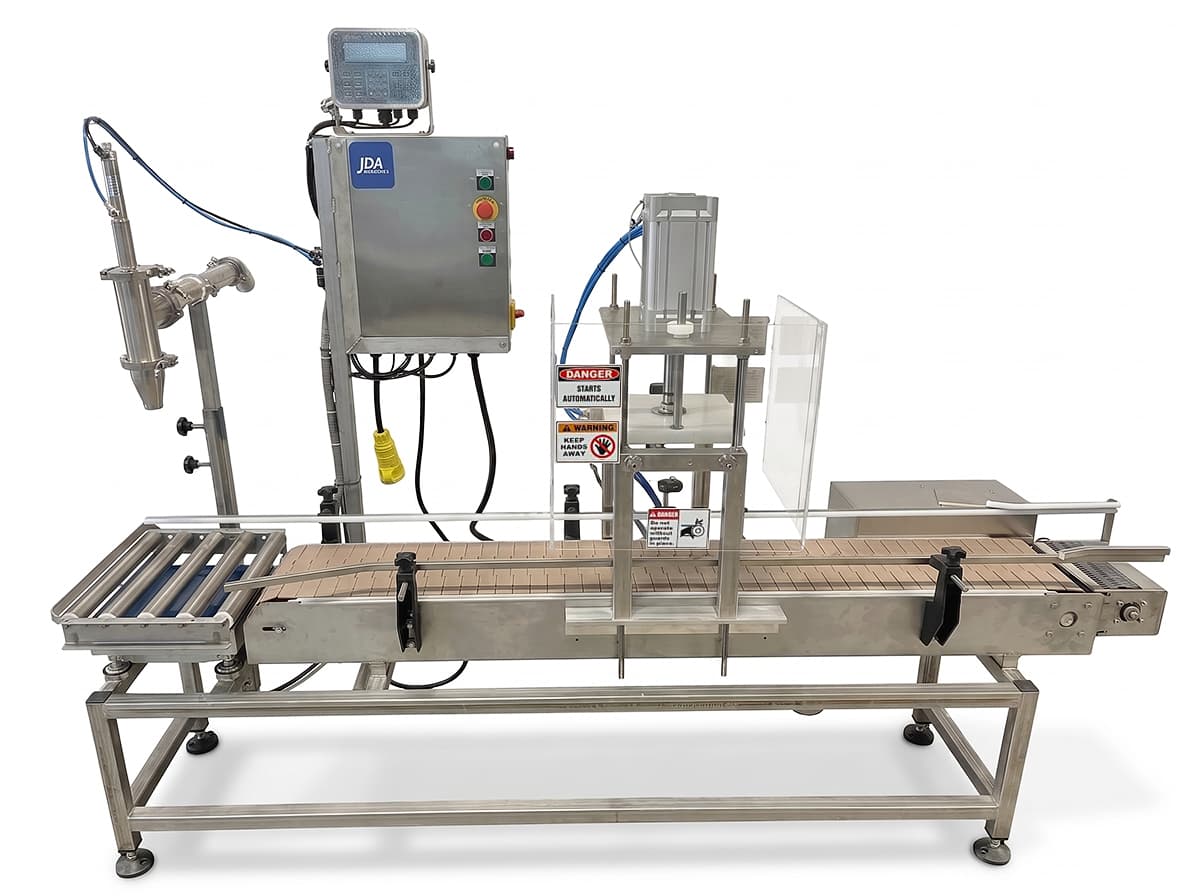

Pail, Bucket & Gallon Filling Capping Machine
Model PFC
The JDA Model PFC Pail, Bucket & Gallon Filling Capping Machine is a heavy-duty packaging solution designed for high-precision net-weight filling and automatic lid closing of pails, buckets, and gallon containers. Net-weight filling delivers exact target weights regardless of product viscosity or temperature, eliminating costly giveaway and ensuring precise consistency.
Featuring an industrial stainless steel load cell and touchscreen interface, operators simply set dual Bulk and Dribble targets for fast initial fills followed by a high-accuracy finish. Containers index smoothly to the automated compression capping head, eliminating the manual physical force that causes hand, wrist, or back strain while preventing hazardous workplace spills.
Versatile Product Handling
Equipped with a positive-displacement 316 stainless steel lobe pump (or optional chemical-duty pump), the unit draws directly from tanks or totes to fill hot or cold products:
- Food & Beverage: Sauces, condiments, syrups, and edible ingredients.
- Industrial & Chemical: Paints, coatings, lubricants, and chemicals.
- Dry Powders & Bulk: Easily integrates with the JDA Inclined Screw Feeder.
Get a quick quote!
Simple, affordable pricing. Free product demos are also available.
Features
- Precision Net-Weight Filling: High-accuracy stainless steel industrial load cell eliminates container tare weight variances and costly overfills.
- Dual-Stage Bulk & Dribble Logic: Programmable dual setpoints deliver maximum filling speeds with precise, low-velocity shutoff for tight weight tolerances.
- No-Drip Cutoff Nozzle: Pneumatic positive-cutoff fill nozzles available in multiple sizes to prevent drips, neck contamination, and product waste.
- Integrated Automatic Lid Press/Crimper: Adjustable compression closing head seals lids securely on multiple sizes of pails, buckets, and cans without manual operator strain.
- Direct Tote / Tank Hookup: Sanitary positive-displacement lobe pump can draw direct from bulk holding tanks or IBC totes.
- Sanitary Construction: Product contact parts fabricated in 316 stainless steel; conveyor frame and chassis built with rugged 304 stainless steel.
- Safety & Ergonomics Guarding: Transparent safety shields around capping pistons and clear warning indicators protect operators during automated cycles.
- Quick-Disconnect Maintenance: Modular electrical disconnects and clamp-together sanitary piping for fast changeovers and sanitation.
- Adjustable Container Handling: Fully adjustable side rails and conveyor guides easily accommodate containers ranging from 1-gallon jugs up to 5-gallon (20L) industrial pails.
Specifications
- Model: JDA Model PFC (Pail, Bucket & Gallon Filler Capper).
- Compatible Containers: Handles jugs, gallon containers, open-top cans, and industrial pails/buckets.
- Filling Speed & Output: Variable delivery rates up to 50 litres per minute.

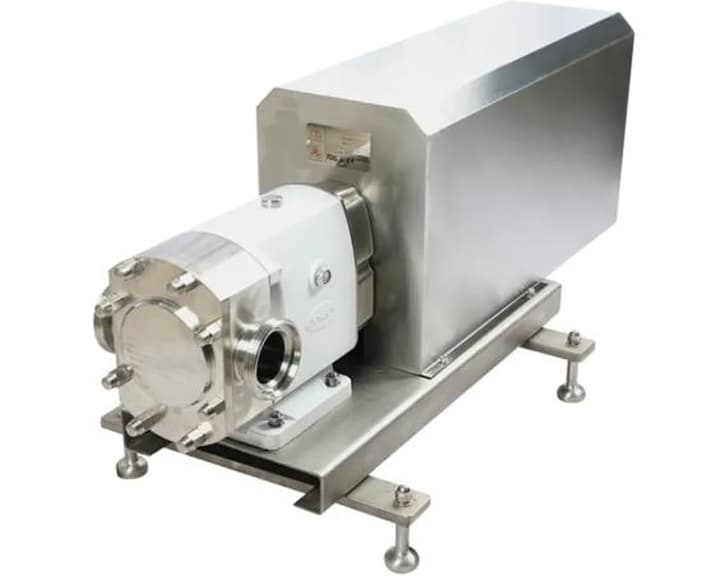

- Product Pump: Sanitary positive-displacement 316 stainless steel lobe pump (specialty chemical pump configurations also available).
- Materials & Construction: 316 stainless steel product contact parts and sanitary nozzle assembly; 304 stainless steel welded frame and reinforced conveyor chassis.
- Weighing & Measurement System: High-precision stainless steel industrial load cell with a column-mounted digital operator indicator.
- Filling Operation: Dual-setpoint net-weight filling featuring high-speed Bulk and precision Dribble cycles.

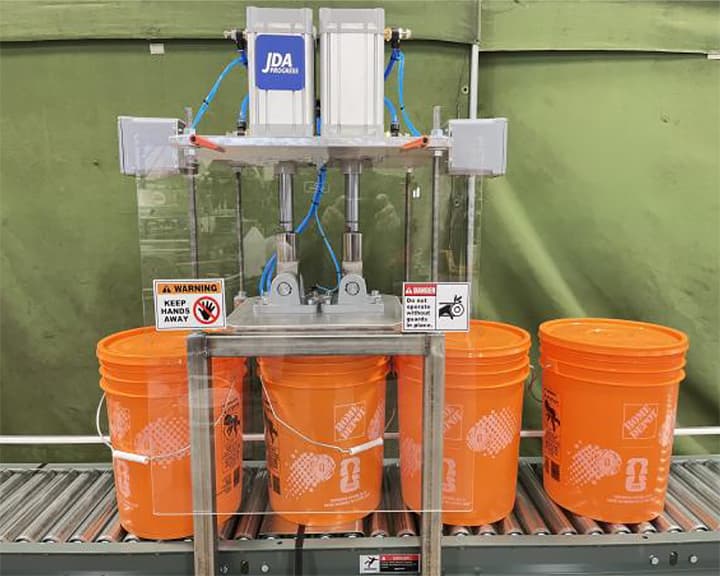

- Capping Mechanism: Pneumatic vertical compression closing and crimping head with adjustable container side guides.
- Pneumatic Requirements: 6 to 8 CFM @ 80 PSI compressed air supply.
- Machine Footprint: Approximately 2,000 mm (78.7 in) overall length × 700 mm (27.6 in) base width × 1,600 mm (63 in) overall height.
