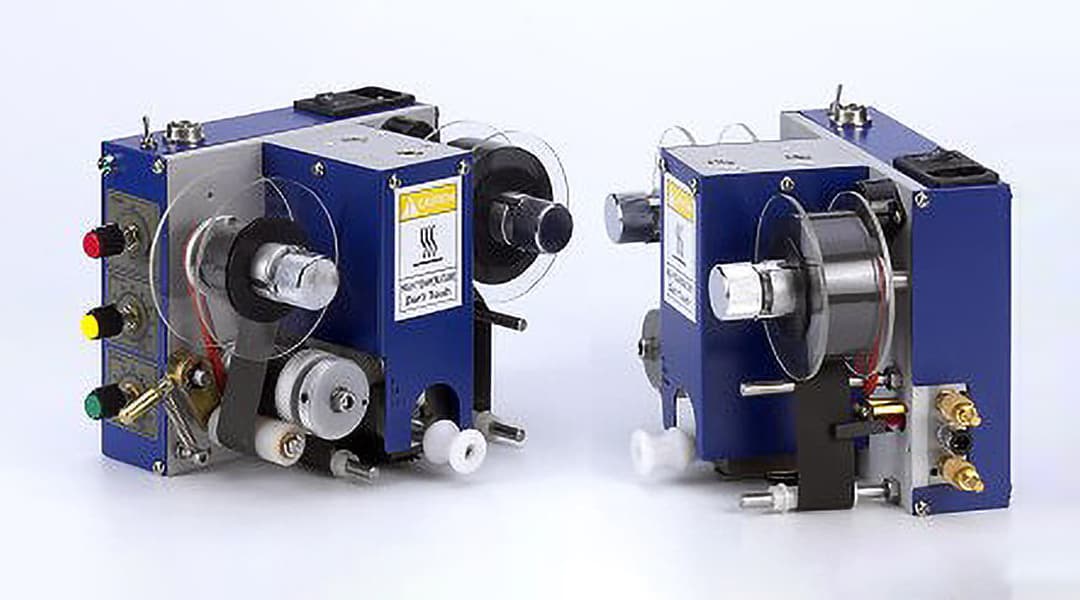

Pneumatic-driven hot stamp data coder
Model HS-30
Our pneumatic-driven hot stamp data coder is a compact, lightweight, and user-friendly machine. Designed for versatility and efficiency, this coder is ideal for overprinting text onto various films like paper, plastic, pharmaceutical cartons, cellophane, polypropylene, aluminum, polyester, or cardboard.
The HS-30 boasts a printing speed of up to 150 prints per minute within a 20x35 mm printing area, making it suitable for high-volume operations.
Get a quick quote!
Simple, affordable pricing. Free product demos are also available.
Features
- Versatile Application: Easily installed on labeling machines and VFFS (Vertical Form Fill Seal) packaging machines, this coder is adept at handling a range of materials.
- Functionality: Capable of printing crucial information like expiration dates, manufacturer's codes, lot numbers, and more on pre-made bags, plastic, paper, and cardboard packaging.
- Adjustable Thermostat: A fast-heating mechanism with an easily adjustable temperature control system, capable of handling different materials.
- 1-3 lines of print, adjustable
- End of ribbon sensor
- Easy foil mount and interchangeable types allow for quick setup and changeovers between batches
Specifications
- Dispensable material: hot foil/ribbon
- Printing area: 20 x 35 mm
- Printing speed: 120 prints/min
- Ribbon length: 100-153 metres
- Character size: 3 mm
- Signal required: connect signal, photoelectric sensor or limit switch
- Coder dimension (HxWxL): 150 x 220 x 150 mm
- Net weight: 9-11 kg (depending on frame size)
- Power required: 100-110V AC or 200-240V AC, 50/60Hz, single phase, 100W
- Air supply: 4 BAR (60 PSI)
