Redeepac 520/Scale VFFS

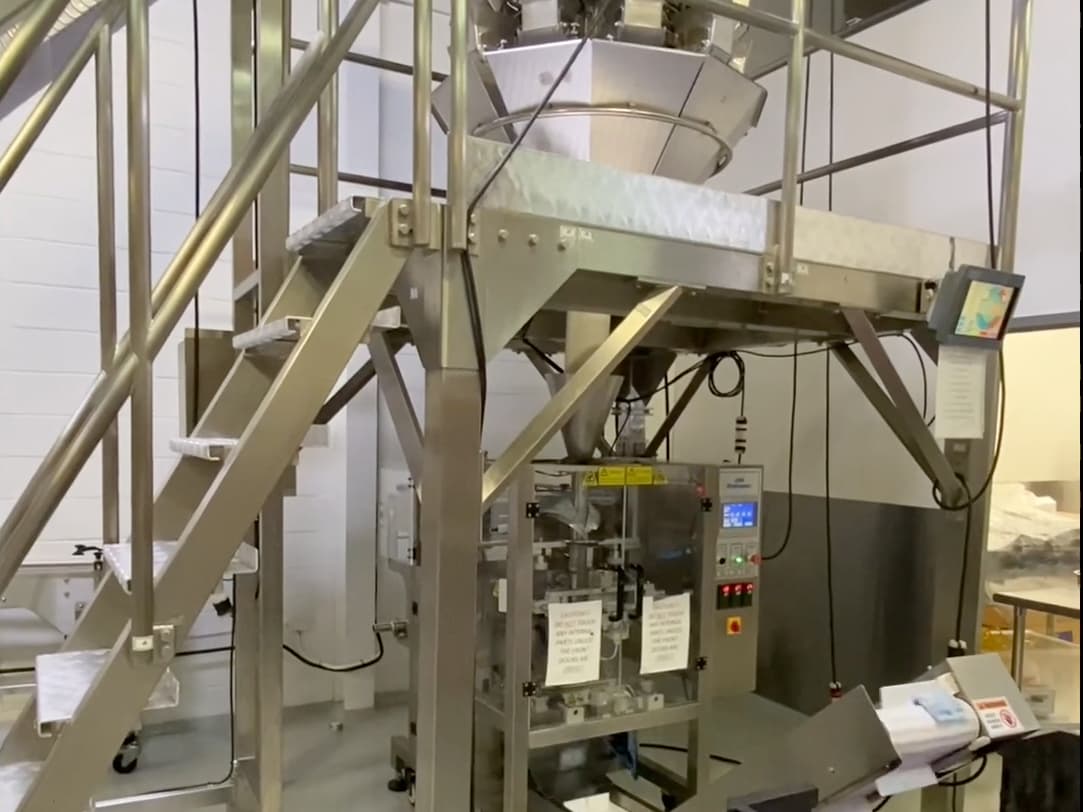

JDA Redeepac 520/Scale VFFS machine

Model Redeepac 520/Scale

The Redeepac 520/Scale has pneumatically operated, constantly heated seal bars with the horizontal bars being bioactive. Capable of producing pillow pack or optional gusseted bags, its unique design permits it to seal polyethylene (optional) and laminates.

Get a quick quote!

Simple, affordable pricing. Free product demos are also available.


  • Laser cut and curved machine frame (Print registration photocell)
  • Forming tube replaceable without tools (Hot foil printer)
  • Bag length adjust through display (Additional forming tube)
  • Length registered by encoder (Hole punch)
  • Motorized film unwind (Discharge conveyor)
  • Control with up to 10 programs in memory (Vacuum pack)
  • Lexan polycarbonate safety cover with micro switches (Gas flush)
  • Bag counter - partial and total
  • 'No product', 'No film', etc. alarms

closeup view of JDA Redeepac 520/Scale


  • Type of Film : 50 - 150 my
  • Bags - Width Sizes : Min. 112 mm - Max. 325 mm 4.5" - 11.5"
  • Speed with Polyethylene : 30 - 40 Bags/min
  • Bags - Length Sizes : Min. 100 mm - Max. 500 mm 4" - 19.5"
  • Speed with Laminated : 50 - 60 Bags/min
  • Machine Sizes : 1700 mm x 1320 mm x 1650 mm H 67" x 52" x 65"
